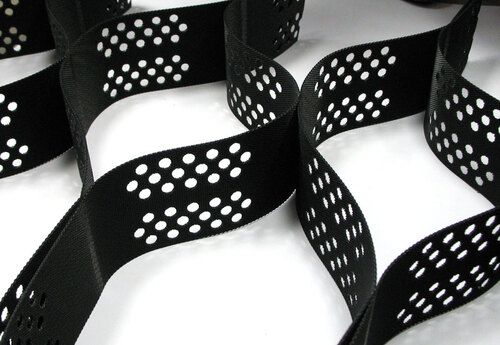

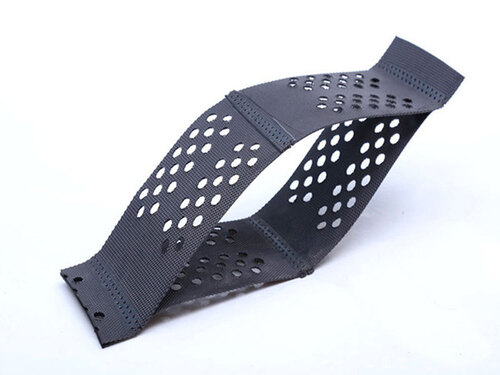

Product Introduction: Geogrid is a mesh structure formed by high-strength thermoplastic sheets, which are strongly welded or connected by U-shaped clamps. It can expand and contract freely, and can be folded up during transportation. When in use, it can be opened and filled with soil, rock or concrete materials, forming a structure with strong lateral limiting force and high stiffness. It can be used as a cushion layer to increase the bearing capacity of weak foundations, and can also be laid on slopes to form slope protection structures. It can also be used to build support structures.

Product specifications: TGLG5, TGLG8, TGLG10, TGLG15, TGLG20 (cm)

Product features: It belongs to special geosynthetic materials. The biggest feature of using it to reinforce the roadbed, slope protection, and construct retaining walls of highways is that it can solve various difficult problems that are difficult to handle with conventional methods in rock engineering, such as bridge head jumping, soft foundation subsidence, grouting, collapse, etc. It has the characteristics of light material, wear resistance, aging resistance, chemical corrosion resistance, wide temperature range, high tensile strength, good rigidity and toughness, strong impact resistance, relatively stable size, and convenient transportation.

Application scope: Widely used in the reinforcement of soft soil foundations, steep slope protection, as well as foundation reinforcement projects for highways, railways, airports, docks, etc., especially suitable for weathered forests, deserts, and swamps.

Execution standards: GB/T19274-2003 "Geosynthetics Plastic Geogrid", JT/T 516-2004 "Geosynthetics Geogrid for Highway Engineering".
